◆Full-digital soft-switching inverter technology with 50kHz switching frequency, achieving microsecond-level current response.
◆Supports multiple welding modes including Gas Metal Arc Welding(GMAW),Low Spatter, Pulse/Dual-pulse,Rapid Pulse Control(RPC),Shielded Metal Arc Welding (SMAW),Gas Tungsten Arc Welding(GTAW), and Pulsed Gas Tungsten Arc Welding (Pulsed GTAW),among others.
◆Compatible with multiple materials including Carbon Steel,Stainless Steel,Aluminum Alloy, Nickel-based Alloy, Titanium Alloy, and High-strength Steel.
◆RPC (Rapid Pulse Control) technology achieving both stable arc performance and ultra-low heat input.
◆Integrated multiple welding expert programs with intelligent synergic control for convenient and efficient operation.
◆7-inch high-definition touch screen, seamlessly blending visual experience with elegant interaction.
◆Supports cloud-based intelligent welding data management and remote monitoring systems. Compatible with multiple communication protocols and robot communication interfaces.
◆Equipped with USB and Ethernet interfaces, allowing targeted upgrades for new materials and welding processes.
◆The welding power supply and wire feeder communicate via high-speed industrial Ethernet, enabling millisecond-level precision control of wire feeding speed.
◆Multi-stage EMI protection combined with filtering technology, delivering triple advantages of EMC, anti-interference performance and harmonic suppression.

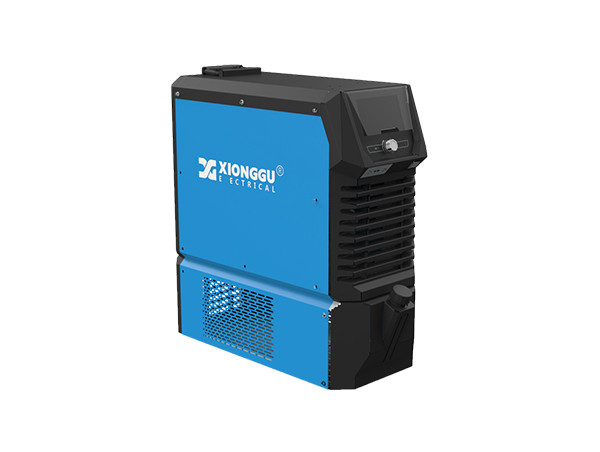

| Model | DPS-500Plus |
| Input Power Supply | 3 phase 380V±20％ 50/60Hz |
| Rated Input Power | 26.3kVA |
| Rated Input Current | 40A |
| Rated Output Current/Voltage | 500A/40V |
| Rated Duty Cycle | 60％ |
| Max. Open-Circuit Voltage (Peak) | 96V |
| Output Current Range | 50～500A |
| Output Voltage Range | 16.5～39V |
| Man-machine delivery system | LCD Touch screen |
| Data Aquisition System | Yes |
| Cooling | Air cooled |
| Ambient Temperature | -40～55℃ |
| Altitude | ≤4000m If the altitude is greater than 1000m, the duty circle will decrease） |
| IP rating | IP23 |
| Insulation Grade | F |
| Weight | 60kg |
| Dimensions (W×L×H) | 332mm×716mm×579mm |
With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
