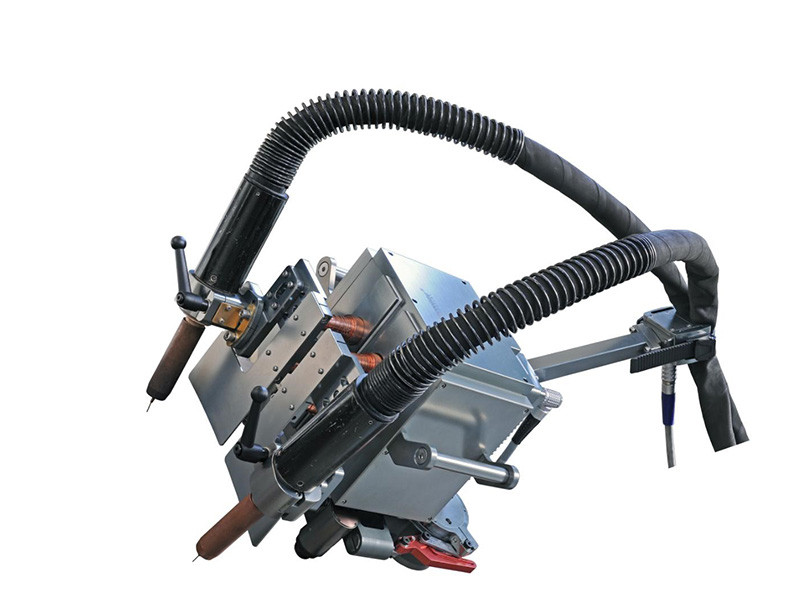

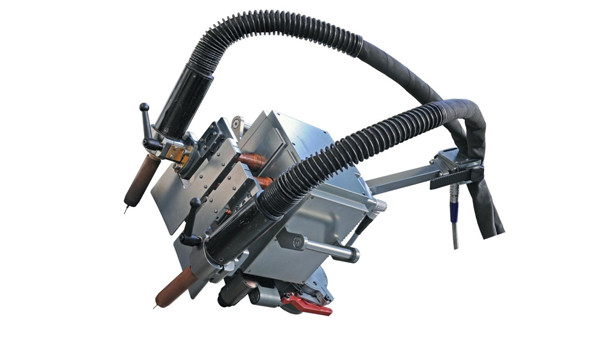

Function: It can be used for field pipe heat welding, fill welding and cap welding, suitable for GMAW-S, GMAW-P and FCAW-GS welding processes.

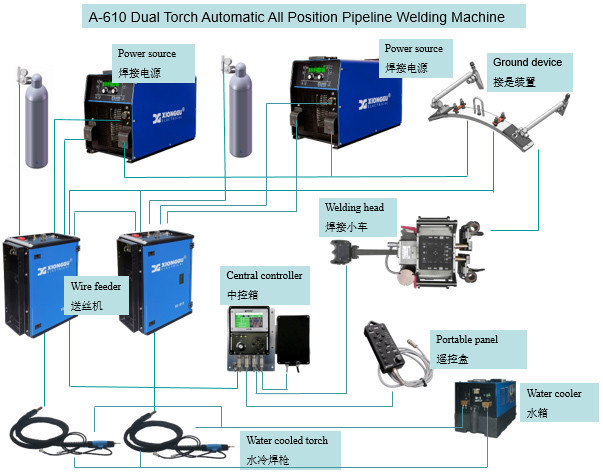

Configuration: welding trolley, wire feeding device, central controller, handheld LCD remote control, welding power supply, cooling system, water-cooled welding gun, control cable.
◆ LCD display, Chinese/English operation interface, friendly and intuitive;
◆ It has the function of automatic tracking of high and low left and right, which comprehensively reduces the difficulty of welder operation and labor intensity;
◆ The application is embedded in the system platform, with a built-in welding expert database, and the corresponding welding parameters can be called according to the permission;
◆ The system can automatically call the corresponding parameters according to the position of the trolley to achieve smooth transition of welding parameters and accurate all-position welding;
◆ With 4G, WIFI, QR code scanning function; It can provide remote technical services and data cloud transmission to facilitate real-time quality management.
| Device model | A-610 | Product Code | 4307000000 |
| Adapts to pipe diameters | ≥Φ500mm | Walking speed | 0.1~1.55 m/min |
| Wire feeding speed | 2.5~25 m/min | Swing mode | Double torches separate oscillation |
| Torch angle adjustment | ± 10° | Vertical axis travel | 50.8mm |
| Horizontal axis travel | 50.8mm | Ambient temperature | -40~55℃ |
| altitude | 4500m | Ingress protection | IP54 |
| Welding trolley weight | 15.8kg | Dimensions (W×D×H) | 345mm×400mm×390mm |
With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
