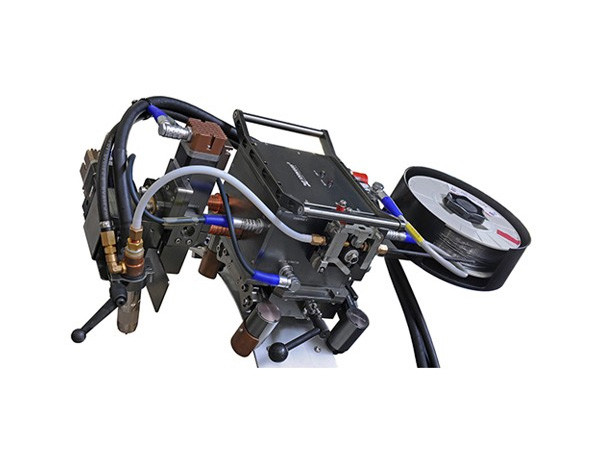

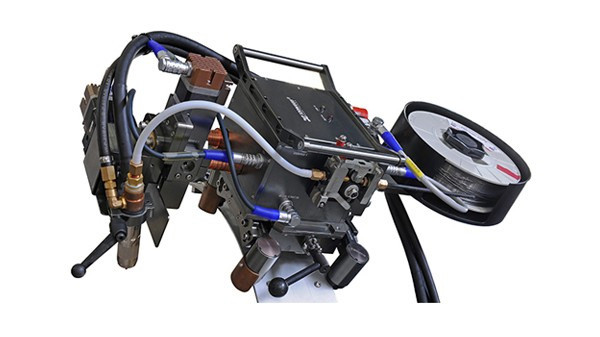

Function: It can be used for pipe root welding, heat welding, filling welding and cap welding, suitable for horizontal horizontal welding and vertical welding of tanks, and is also suitable for GMAW/FCAW-GS/GTAW welding processes. The configuration of different tracks is also suitable for the full-position welding needs of other workpieces.

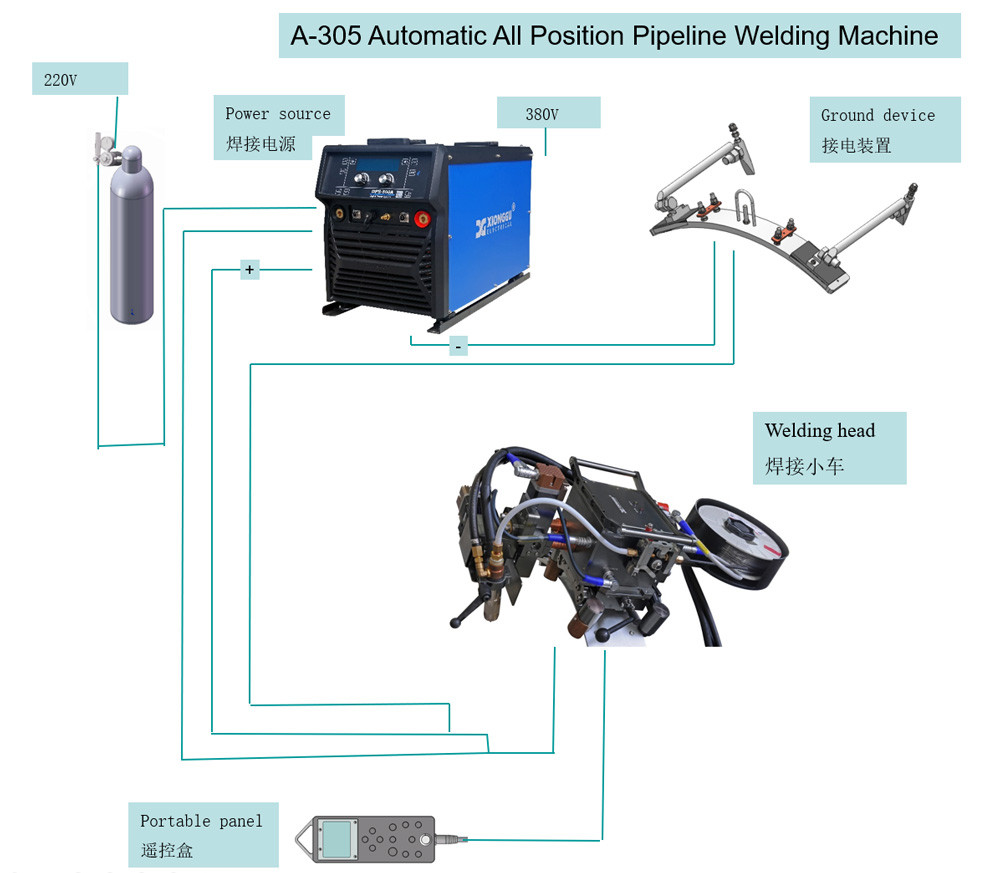

Configuration: welding trolley, LCD adapter, control cable; Digital welding power supply (built-in controller).
◆ Chinese/English operation interface;
◆The height of the trolley is lower, which is more suitable for the needs of narrow operation space for refining and chemical process pipeline prefabrication and urban pipeline construction;
◆Handheld LCD display remote control operation, convenient and intuitive, comprehensively reduce the labor intensity of welders;
◆ The system has a built-in welding database, which can modify and call the corresponding welding parameters according to the permission;
◆ The system realizes the smooth transition of each layer of welding parameters and accurate all-position welding;
◆ With WIFI, 4G, QR code scanning function; It can provide remote technical services and data cloud transmission to facilitate real-time quality management;
◆ It has the function of automatic arc tracking;
◆ Replace different tracks, 1G, 2G, 3G, 4G, 5G, 5GX, 6G, 6GX position welding can be realized.
| Model | A-305 |
| Product Code | 4354000000 |
| Adapts to the pipe diameter | ≥Φ168mm |
| Walking speed | 0.1~1.5 m/min |
| Wire feeding speed | 2.5~16 m/min |
| Number of segments per group | 1~180 Sections |
| Welding torch dry extension adjustment distance | 0~50mm |
| The welding torch adjusts the distance left and right |
0~50mm |
| Welding torch inclination adjustment angle | ±45° |
| Torch swing width | 0~50 mm |
| Welding torch swing form | Flat/angular pendulum |
| Wire spool weight | 5kg |
| Ambient temperature | -40~55℃ |
| altitude | 4500m |
| Ingress protection | IP54 |
| Trolley weight | 15.8kg |
| Dimensions (W×D×H) | 600mm×350mm×250mm |
With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
